Titanium/cARBON

Venticinquesimo



In this model, carbon and titanium merge their qualities to create one of the best models designed by Marco Bertoletti.

The most modern technologies meet classic design with extraordinary performance, where comfort, lightness, and elegance blend to create a unique object.



TUBES: Carbon 3K TW custom made, lugs and rear triangle grade 9 titanium (3Al/2.5V)

HEAD TUBE: Titanium grade 9, 1”1/8 1”1/2 tapered obtained from a monolithic, CNC machined

SEAT TUBE: Option: integrated seatpost

BOTTOM BRACKET: Titanium grade 5 TUN bracket

DROPOUTS: Titanium grade 5 with carbon inserts

WEIGHT: 1300 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting

FRAME WARRANTY: 10 years

Optional disc dropouts with 12mm thru axle

Price includes frame, fork, headset, titanium seat clamp, and front derailleur clamp starting at $7800

Queen

A high range frame, made using the best Grade 9 titanium tubes. Available with a carbon integrated seat tube, this models offers exciting performance combined with incomparable comfort.

The Queen is especially suggested for races and long rides.

TUBES: Grade 9 titanium (3Al/2,5V)

HEAD TUBE: 1”-1/8 - 1”-1/2 tapered with grade 9 (3Al/2,5V) titanium rings for bearings - (Option: CNC machined from titanium grade 5 monolithic, 46 CNC )

DOWN TUBE: ø 42 oval differentiated thickness (options: ø 44- ø 48)

TOP TUBE: ø 35 differentiated thickness

SEAT TUBE: ø 35 carbon 3K custom made (Option: standard seatpost)

SEAT STAYS: ø 19 bi-tapered differentiated thickness

CHAIN STAYS: ø 24.5 tapered oval 30 x 21 differentiated thickness

BOTTOM BRACKET: BSA grade 5 (6Al/4V) titanium (Options: TUN bracket grade 5 titanium)

DROPOUTS: Grade 5 titanium with carbon inserts

WEIGHT: 1450gr. (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Hand satin with customizable laser markings

FRAME WARRANTY:10 years

​Price includes frame, fork, headset, seat clamp, and front derailleur clamp starting at $6200

Titanium

IL RE



Titanium frame realized with Grade 9 tubes. It is particularly recommended for competitions, gran fondo's and long excursions. It is perfect for someone looking for a titanium frame with optimal stability and rigidity.



Tubes: Titanium  grade 9 (3Al/2.5V)

HEAD TUBE: 1”1/8 - 1”1/2 tapered (options: CNC machined)

DOWN TUBE: ø 42 differentiated thickness (options: ø 44-48)

TOP TUBE: ø 34.9

SEAT TUBE: ø 34.9

SEAT STAYS : ø 19 bi-tapered

CHAIN STAYS: ø 24.5 tapered oval 30 x 19

BOTTOM BRACKET: BSA titanium grade 5 (option: TUN bracket)

DROPOUTS : Titanium grade 5 with carbon inserts

WEIGHT: 1500 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupset on request

FINISHING: Hand satin with customizable laser markings

FRAME WARRANTY: 10 years

VERSION: Road (options: MTB, Track, Gravel, Cross)

Optional IL RE Disc thru(12mm thru-axle)

Price includes frame, fork, headset, seat clamp, and front derailleur clamp starting at $5720

IL 58

Ultra light titanium frame offering incomparable comfort, high performance, great stability and outstanding handling.

Made using the best conical titanium differentiated thickness Grade 9 tubes available, the Il ’58 is suitable for racing or any challenge.



TUBES: Titanium grade 9 (3aL/2.5V)

HEAD TUBE: CNC 46 (options: CNC machined titanium grade 9 obtained from a monolithic, 1”1/8 1”1/2 titanium grade 9)

DOWN TUBE: ø 37.3 tapered, differentiated thickness

TOP TUBE: ø 34.9 - 31.8 tapered, differentiated thickness

SEAT TUBE: ø 34.9 - 31.8 tapered, differentiated thickness

SEAT STAYS: ø 19 bi-tapered, differentiated thickness

CHAIN STAYS: ø 24.5 tapered oval 30 x 21, differentiated thickness

BOTTOM BRACKET: BSA (options: TUN bracket titanium grade 5)

DROPOUTS: Titanium grade 5 with carbon inserts

WEIGHT: 1190 gr. (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Hand satin with customizable laser markings

FRAME WARRANTY: 10 years

Price includes fork, headset, seat clamp, and front derailleur clamp starting at $6465

Queen FTI

A high range frame, made using the best Grade 9 titanium tubes. Available with a titanium integrated seat tube, this models offers exciting performance combined with incomparable comfort.

The Queen is especially suggested for races and long rides.

TUBES: Grade 9 titanium (3Al/2,5V)

HEAD TUBE: 1”-1/8 - 1”-1/2 tapered with grade 9 (3Al/2,5V) titanium rings for bearings - (Option: CNC machined from titanium grade 5 monolithic, 46 CNC)

DOWN TUBE: ø 42 oval differentiated thickness (options: ø 44- ø 48)

TOP TUBE: ø 35 differentiated thickness

SEAT TUBE: (Option: standard seatpost)

SEAT STAYS: ø 19 bi-tapered differentiated thickness

CHAIN STAYS: ø 24.5 tapered oval 30 x 21 differentiated thickness

BOTTOM BRACKET: BSA grade 5 (6Al/4V) titanium (Options: TUN bracket grade 5 titanium)

DROPOUTS: Grade 5 titanium with carbon inserts

WEIGHT: 1450gr. (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Hand satin with customizable laser markings

FRAME WARRANTY: 10 years

Carbon

HT 11.5



This frame is born from the research of the pure performance and it is intended for those who want maximum performance to dominate the mountains. Built with an ultra-light carbon fiber, it is scoring records in terms of lightness and stiffness.



TUBES: Carbon 1K custom made

HEAD TUBE: 1”1/8 - 1”1/2

SEAT TUBE: Option: integrated seatpost

BOTTOM BRACKET: BSA

DROPOUTS: Integrated carbon

WEIGHT: 820 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting

FRAME WARRANTY: 3 years

Price includes frame, fork, headset, carbon seat clamp, and front derailleur clamp starting at $5275

TX10.0



A tailor made frame designed to withstand the stresses generated by disc brakes.

The frame uses hand wrapped carbon tubes and is suitable for cyclists up to 75kg weight.

The TX10.0 is a highly responsive frame with perfect stability even through the fastest corners.

Ideal for competitions, it guarantees the highest performance even on difficult and highly technical paths.

TUBES: Carbon 1K custom made

HEAD TUBE 1”1/8 - 1”1/2:1”1/8 - 1”1/2

SEAT TUBE: Option: integrated seatpost

BOTTOM BRACKET: BSA

DROPOUTS: Integrated carbon flat DB

WEIGHT: 850 gr (medium size)

FORK: Carbon disc flat straight

SETTINGS FOR: All groupsets on request disc version

FINISHING: Customized painting

FRAME WARRANTY: 3 years

Price includes frame, fork, headset, and front derailleur clamp starting at $4999

TX6.5



Similar to the “TX10.0”, the TX6.5 is a tailor made carbon frame designed to withstand the stresses generated by disc brakes, but without a rider weight limit.

Always very responsive and with good stability, the “TX6.5” is slightly heavier and is suitable to use on all terrains.

TUBES: Carbon 1K custom made

HEAD TUBE: 1”1/8 - 1”1/2

SEAT TUBE: Option: integrated seatpost

BOTTOM BRACKET: BSA

DROPOUTS: Integrated carbon flat DB

WEIGHT: 1000 gr (medium size)

FORK: Carbon disc flat straight

SETTING FOR: All groupsets on request disc version

FINISHING: Customized painting

FRAME WARRANTY: 3 years

Price includes frame, fork, headset, and front derailleur clamp starting at $4065

HT9.5



Custom made carbon tubes according to client’s characteristics and requirements. Tube-to-tube bonded and hand wrapped. Made-to-measure geometry with no weight limit, offering a perfect combination of lightness, stability, exceptional control and performance.

This is the versatile ‘all-rounder’ ideal for faster riding and ready for any route.

The HT9.5 represents the Legend model with the best quality / price and weight / performance ratios.

TUBES: Carbon 3K TW custom made
HEAD TUBE: 1”1/8 - 1”1/2
SEAT TUBE: Option: integrated seatpost
BOTTOM BRACKET: BSA (option: BB30)
DROPOUTS: Carbon
WEIGHT: 930 gr (medium size)
FORK: Carbon 3K
SETTINGS FOR: All groupsets on request
FINISHING: Customized painting
FRAME WARRANTY: 3 years

Price includes frame, fork, headset, seat clamp, and front derailleur clamp starting at $4725

HT7.5



Custom frame with carbon tubes adapted to the physical and athletic characteristics of the client, with no weight limit. Excellent reactivity, rigidity, and stability. Built to meet every need.

TUBES: Carbon 3K custom made

HEAD TUBE: 1”1/8 - 1”1/2

SEAT TUBE: Option: integrated seatpost

BOTTOM BRACKET: BSA

DROPOUTS: Aluminium

WEIGHT: 1000 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting

FRAME WARRANTY: 3 years

Price includes frame, fork, headset, seat clamp, and front derailleur clamp starting at $4125

HT5.7



Frame made of custom 3K carbon tubes, based on the physical and performance requirements of each cyclist.

Suitable for riders of any weight, this model offers a punchy responsiveness, blended with excellent stability. The HT5.7offers the best of its features on long runs.

TUBES: Carbon 3K

HEAD TUBE: 1”1/8 - 1”1/2

SEAT TUBE: Option: integrated seatpost

BOTTOM BRACKET: BSA

DROPOUTS: Aluminium

WEIGHT: 840 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting

FRAME WARRANTY: 3 years

Price includes frame, fork, headset, seat clamp, front derailleur clamp starting at $3585

TT3



Made to measure carbon frame designed personally by Marco Bertoletti.

TT3 is designed for aerodynamics and speed lovers. This frame is ideal for competitions where the highest response is required in terms of reactivity.

Stunning rigidity and high performance are produced using contemporary shaped tubes, design and geometries.

TUBES: Carbon 3K

HEAD TUBE: 1”1/8 - 1”1/2 tapered (optional: upper bearing integrated in the head tube)

SEAT TUBE: Option: integrated seatpost

BOTTOM BRACKET: BSA

DROPOUTS: Carbon

WEIGHT: 1100 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting

FRAME WARRANTY: 3 years

Please email for current pricing.

Steel/Stainless steel

Sella Ronda



The classic steel frame with which Marco Bertoletti’s frame building story began. A true ‘Opera D’Arte’, hand brazed with classic steel tubes, steel dropouts, and a traditional hand welded fork. Sella Ronda is artistically finished, featuring exquisite chromed lugs, chain stays, headtube and dropouts, with an impeccable paint finish. Available in road, track, and single speed versions.

TUBES: Special steel with connectors BERTOLETTI
HEAD TUBE: 1” thread (option: 1” not threaded)
BOTTOM BRACKET: ITA steel (option: BSA steel)
DROPOUTS: Steel
WEIGHT: 1650 gr (medium size)
Fork: Steel 1" thread or ahead
SETTINGS FOR: All groupsets on request
FINISHING: Customized painting
FRAME WARRANTY: 3 years

Price includes frame, fork, headset, seat clamp, and front derailleur clamp starting at $2375

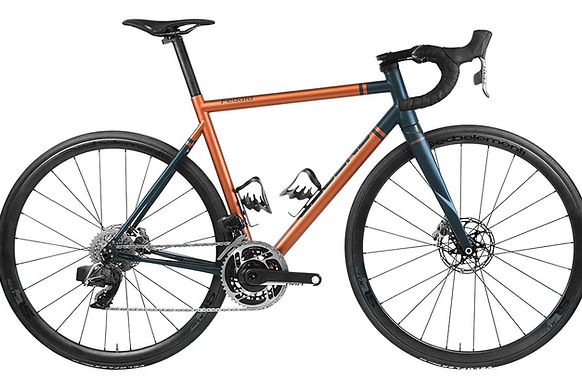

Fedaia



For those who love steel frames, the Fedaia is in a class of its own. Made with differentiated thickness tubing based on customers’ preference of comfort and stability, this model is suitable for infinite customization.

It is ideal for those who ride long distance, or perfect as second bike for very intense training in hard weather conditions, especially in disc brake version.

This model is suitable for infinite customizations.

TUBES: Special triple-size steel tubes LEGEND custom

HEAD TUBE: 1”1/8 - 1”1/2 (options: 1”1/8, 46 mm )

DOWN TUBE: STANDARD: ø 38 oval differentiated thickness, OVERSIZE: ø 44 oval differentiated thickness

TOP TUBE: STANDARD: ø 31.7 differentiated thickness, OVERSIZE: ø 35 differentiated thickness

SEAT TUBE: STANDARD: ø 31.7 differentiated thickness, OVERSIZE: ø 35 differentiated thickness

SEAT STAYS: ø 17 tapered differentiated thickness

CHAIN STAYS: ø 24 tapered oval 18 x 30 differentiated thickness

BOTTOM BRACKET: BSA (option: steel TUN bracket)

DROPOUTS: Steel (option: steel for electronic groupset)

WEIGHT: 1600 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting with cataphoresis

FRAME WARRANTY: 3 years

VERSION: Road (options: MTB, Track, Gravel, Cross)

Optional Disc-thru(12mm thru axle)

Price includes fork, headset, seat clamp, and front derailleur clamp starting at $2865

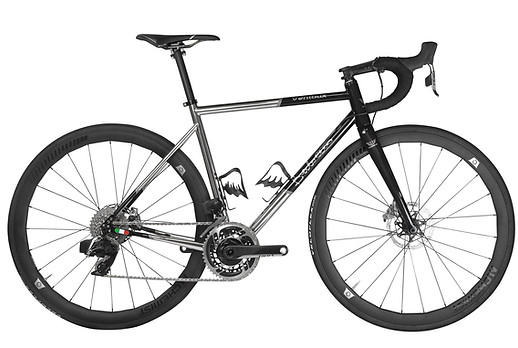

Ventoux



The stainless steel frame, in its most modern form: exceptional performance, light weight and responsiveness combined with the real feel of steel. Always handmade and made to measure with the same care and attention for a perfect TIG weld.

TUBES: Stainless steel tubes custom LEGEND

HEAD TUBE: 1” 1/8 (option: 46 mm)

DOWN TUBE: ø 38 oval differentiated thickness

TOP TUBE: ø 31.7 differentiated thickness

SEAT TUBE: ø 31.7 differentiated thickness

SEAT STAYS: ø 16 tapered differentiated thickness

CHAIN STAYS: ø 24 oval differentiated thickness

BOTTOM BRACKET: BSA (option: TUN bracket stainless steel)

DROPOUTS : Stainless steel

WEIGHT: 1400 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting, polished, laser markings

Ventoux option with disc dropouts/12mm thru axle

FRAME WARRANTY: 3 years

Price includes frame, fork, headset, seat clamp, and front derailleur clamp starting at $4350

Aluminum

Giau



A high-performance competition frame made of special aluminum tubes.

Extremely reactive, lightweight and particularly stiff, the Giau is capable of expressing power to the pedals, making it ideal for short competitions.

TUBES: Special Scandium LEGEND custom

HEAD TUBE: 1”1/8 - 1”1/2

DOWN TUBE: ø 48 oval 38x56 differentiated thickness

TOP TUBE: ø 38 oval 34x44 differentiated thickness

SEAT TUBE: ø 35 differentiated thickness

SEAT STAYS: ø 19 tapered, differentiated thickness

CHAIN STAYS: ø 24 tapered oval 16,5 x 30,5 differentiated thickness

BOTTOM BRACKET: BSA (option: aluminium TUN bracket)

DROPOUTS: Aluminium

WEIGHT: 1100 gr (medium size)

FORK: Carbon curved or straight

SETTINGS FOR: All groupsets on request

FINISHING: Customized painting

FRAME WARRANTY: 3 years

VERSION: Road (options: MTB, Track, Cross, Gravel)

Price includes frame, fork, headset, seat clamp, and front derailleur clamp starting at $2775
